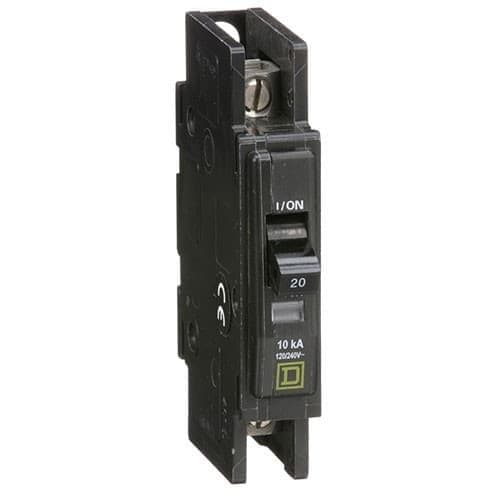

Square D, QOU120, Circuit Breaker, QOU, 20A, 120Vac / 48Vdc Max, 1-Pole, Square D, Surface Or DIN MNT, .75IN
The images shown are for illustration purposes only and may not be an exact representation of the product

Square D, QOU120, Circuit Breaker, QOU, 20A, 120Vac / 48Vdc Max, 1-Pole, Square D, Surface Or DIN MNT, .75IN

  • Model: QOU120
  • GTIN: 00785901418535
  • Manufactured by: Square D
  • Condition: New
    • Estimated Delivery: Dec 7th - Dec 13th
  • In Stock
    • Price: $101.53  $78.10
    QOU Miniature Circuit Breaker, 20A, 1P, 120/240V, 10kA
    product or component type Miniature circuit-breaker
    range of product QOU
    circuit breaker type Standard
    circuit breaker application HACR and Switching Duty rated
    Line Rated Current 20 A
    Number of Poles 1P
    Interrupt Rating 10 kA 120/240 V AC 10 kA 120 V AC 5 kA 48 V DC
    electrical connection Slotted box lugs, line side Slotted box lugs, load side
    [Ue] rated operational voltage 120/240 V AC 120 V AC 48 V DC
    mounting mode Unit mount
    AWG gauge AWG 14...AWG 2 aluminium/copper
    height 4.05 in (102.87 mm)
    depth 2.95 in (74.93 mm)
    width 0.75 in (19.05 mm)
    tightening torque 45 lbf.in (5.08 N.m) AWG 14...AWG 2)
    product certifications CSA IEC UL listed
    Category 00900 - QOU BREAKERS & SWITCH
    Discount Schedule DE2
    GTIN 00785901418535
    Returnability Yes
    Country of origin MX
    Sustainable offer status Green Premium product
    REACh Regulation REACh Declaration
    REACh free of SVHC Yes
    EU RoHS Directive Compliant EU RoHS Declaration
    Mercury free Yes
    RoHS exemption information Yes
    China RoHS Regulation China RoHS declaration Product out of China RoHS scope. Substance declaration for your information.
    Environmental Disclosure Product Environmental Profile
    Circularity Profile No need of specific recycling operations
    Halogen content performance Halogen free product
    Warranty 18 months
