The images shown are for illustration purposes only and may not be an exact representation of the product

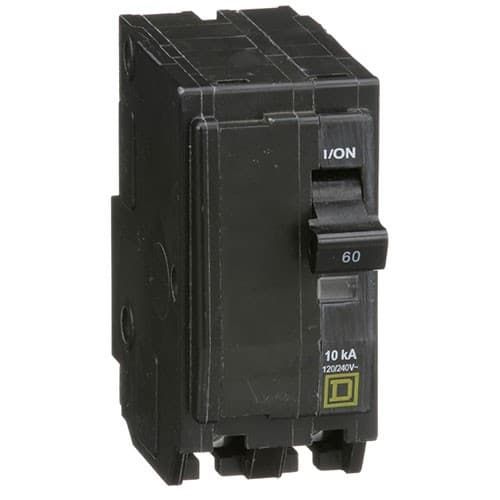

Square D, QO260, Circuit Breaker, QO, 60A, 120/240Vac / 48Vdc Max, 2-Pole, Square D, 1.5IN

Name: Square D, QO260, Circuit Breaker, QO, 60A, 120/240Vac / 48Vdc Max, 2-Pole, Square D, 1.5IN
Brand: Square D
SKU: 195440
Price: 30.33 USD
Availability: InStock

Model: QO260

GTIN: 00785901400561

Manufactured by: Square D

Condition: New

Estimated Delivery:

In Stock

Price: $39.43 $30.33

Mini CB, QO, 60 A, 2P, 120/240 V, 10 kA, Plug in

Product Datasheet | Download
Instruction Sheet | Download
Catalog | Download

Product	Miniature circuit-breaker
Range	QO
Current Rating	60 A
Voltage Rating	120/240 V AC 120 V AC 48 V DC
Mounting Type	Plug-in
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Box lugs

Inturrupt Rating	10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC
Number of Panel Spaces	2
Wire Size	AWG 8...AWG 2 copper or aluminium
tightening torque	44.25 lbf.in (5 N.m) 0.02...0.04 in (10...25 mm) AWG 8...AWG 2)
height	3.12 in (79.25 mm)
depth	2.91 in (73.91 mm)
width	1.5 in (38.10 mm)

Certifications	UL listed CSA
Ambient Rating	104 F (40 C)

Category	00004 - QO,QOT 10-30A 1P;10-60A 2P
Discount Schedule	DE2A
GTIN	00785901400561
Returnability	Yes
Country of origin	MX

Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure	Product Environmental Profile
Circularity Profile	No need of specific recycling operations
Halogen content performance	Halogen free product
