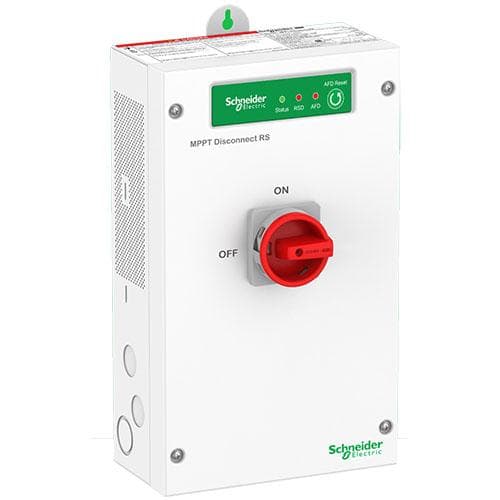

MPPT Disconnect RS for NEC 2017 Compliance Easy to install and commission for Rapid Shutdown PV arrays and NEC 2017 compliance The MPPT Disconnect RS is an accessory for the Conext MPPT 60 150 and MPPT 80 600 charge controllers. It provides a disconnect for the photovoltaic (PV) circuits, an integrated Rapid Shutdown transmitter, and arc fault detection for enhanced safety.
With powerline communication, the MPPT Disconnect RS is compatible with Tigo TS4-F (Fire Safety) for compliance with NEC 2017 670.12.
Part number - MPPT Disconnect RS - 865-1036

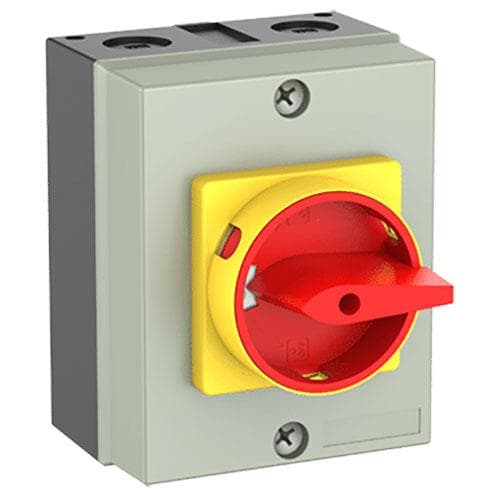

- RS Initiator Switch - 865-1039
- DS20191024 MPPT Disconnect RS | Download
- CT20200115_Solar Installer Handbook_UL | Download
- BR20191210_Schneider Electric Residential Solar Brochure for Homeowners_North America | Download
- Contractual Warranty. For models: CL125E, CL-60E, CL36, XW+, MPPT80, MPPT60, and MPPT Disconnect RS | Download
- 2 Year_Contractual Warranty | Download
- CT20190918_Certificate of Compliance_80012967_EN_MPPT Disconnect RS + Conext MPPT 60 150 | Download
- CT20190918_Certificate of Compliance_80012968_EN_MPPT Disconnect RS + Conext MPPT 80 600 | Download
- ML201910_MPPT Disconnect RS Install and Owners Guide (990-91313) | Download
- ML201912_MPPT Disconnect RS Quick Start Guide (990-91312A) | Download
- ML20191105_Declaration of Operational Compliance between Tigo and Schneider Electric | Download
Simplified NEC 2017 Compliance - Integrated Rapid Shutdown transmitter using power line communication (PLC)
- Compatible with Tigo TS4-F (Fire Safety)
- Arc fault detection certified to UL 1699B
- Compatible with Conext MPPT 80 600 and MPPT 60 1450 charge controllers
Integrated PV Disconnect - 2 leg disconnect, compliant with NEC 2017
- LOTO capability
- 2 input channels with up to 2 strings per channel
Flexible Installation - Multiple configurations with Conext MPPT80 600 and MPPT60 150 charge controllers
- Scalable for larger installations
- Single Rapid Shutdown Initiator Switch can be used with multiple MPPT Disconnect RS for larger systems
- Side or bottom cable entry
- Mount on either side of the Conext MPPT80 600 or MPPT60 150 charge controllers
- Type 1 indoor rated
Remote Initiator Switchg - Outdoor rated Rapid Shutdown (RS) Initiator Switch
- One RS Initiator Switch can control multiple MPPT Disconnect RS for larger systems
