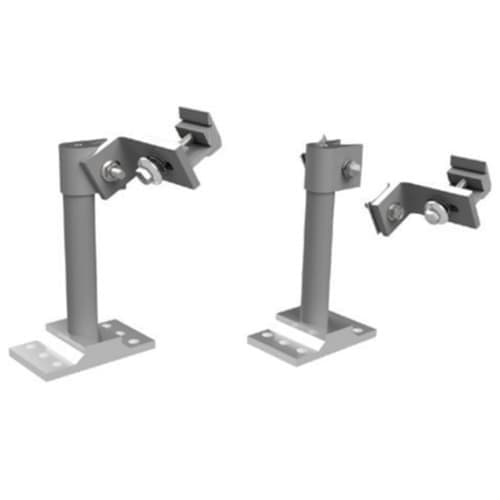

SnapNrack Ultra Rail Tilt Systems Ultra Rail Tilt Standoffs include a Standoff Shaft and Ultra Rail Tilt Clamp (Standoff Clamp, L Foot, and Ultra Rail Mounting Hardware). Bases are to be ordered separately. Order 5 1/2" Standoff for front leg and 10", 14", or 23" for rear leg to obtain desired tilt angle. Please refer to Ultra Rail Tilt Angle Table (Nominal) on page 25 in the Appendix.
Ultra Rail Variable Tilt Hardware Kit for Metal Roof Attachments includes L Feet, Ultra Rail Mounting Hardware, and miscellaneous hardware to complete kit for front and rear legs. Metal roof attachments (without L Foot) and section of Ultra Rail for rear leg are to be ordered separately.
Ultra Rail Variable Tilt Standoff Kit includes (2) 6-Hole Bases, (2) 7" HD standoffs, (2) Standoff Clamps and L Feet with Ultra Rail Mounting Hardware for both front and rear legs. Section of Ultra Rail for rear leg to be ordered separately.
Please refer to Ultra Rail Tilt Angle Table (Nominal) in downloads section to obtain desired tilt angles for 5 - 30 Fixed Tilt Kit Standoffs with Ultra Rail Tilt Clamps.
