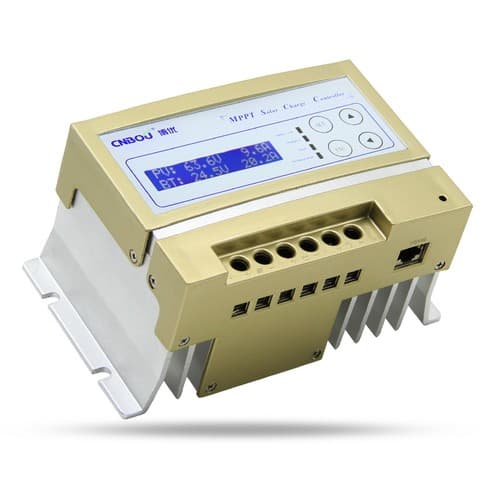

CNBOU, MUSE-4015LNS, 40A MPPT Solar Charge Controller

Name: CNBOU, MUSE-4015LNS, 40A MPPT Solar Charge Controller
Brand: CNBOU
SKU: 4753
Price: 230.26 USD
Availability: InStock

Model: MUSE-4015LNS

Manufactured by: CNBOU

Condition: New

Estimated Delivery:

In Stock

Price: $287.83 $230.26

CNBOU MPPT Solar Charge Controller Supporting Many Battery Types

Lead-acid Batteries
Nickel-hydrogen Batteries
Nickel Cadmium Batteries
Lithium Batteries
- Other Battery Type can customize -
Product Specifications | Download
Product Manual | Download

Options Remote Control

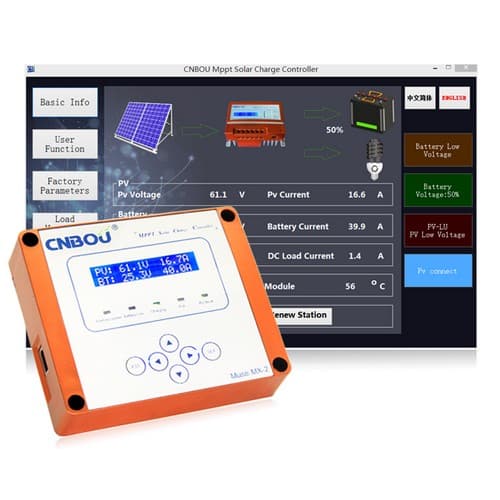

Remote Display & PC Program

Available for 1 KM
Synchronous display runningstate and parameter
Can parameter settings Control DC load output and Fault reset operation ect.
Capacitive touch button ,Higher service life and tightness. (Display)
Support Multimachine Parallel Communication (PC)
Communication module directly contact with PC USB port, Support WIN XP / WIN7

Product Character

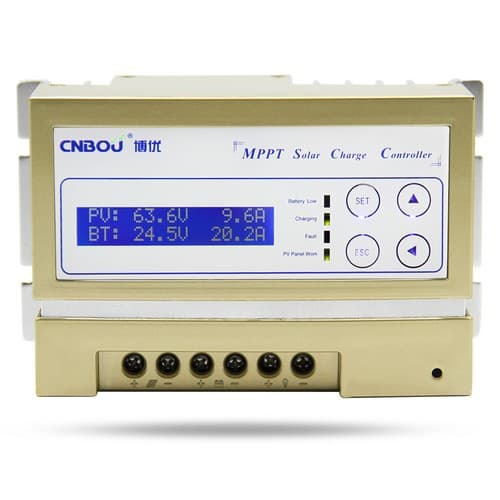

LCD screen
Capacitive touch button
Original import MOS tube
RS485/8-pin RJ45 connector
Three stage Charging Control Model
Auto scan the light intensity to start or stop charging intelligently
Industrial fiberglass PCB board to ensure the good transmission loss

Model	Muse-1015LNS	Muse-2015LNS	Muse-4015LNS
PV Input Channels	1 Channel
Battery Input Voltage	12V/24V Automatic
Specifications	12V	24V	12V	24V	12V	24V
PV Voltage Range	18V-150V	36V-150V	18V-150V	36V-150V	18V-150V	36V-150V
Solar Panel Input Power	120W	240W	240W	480W	480W	960W
Charging Current (Max)	10A	20A	40A
Static Power	1.5W	1.5W	1.5W
Charging Circuit Voltage Drop	0.28V	0.28V	0.28V
Rated Frequency	120W/240W	240W/480W	480W/960W
Floating /Stop Charging/Recovery (V)	14.5V/15V/13.5V
Voltage Drop Between PV To Controller	1.5V
MPPT Scan Speed (Max)	5S
MPPT Efficiency	98%
MAX Transfer Efficiency	97%
DC Load Power Support (Max)	120W	240W	240W	480W	480W	960W
DC Load Running Setting	Time / Light/Manual Control
Temperature Compensation	-4mv//2V , -35~+80,Accuracy:1
Control Type	Common Negative Control
Working Temperature	-25C~55
Humidity Range	10% - 90% Without Condensation
Ingress Protection	IP 30
Communication	RS485/8-pin RJ45 connector
Over Current Protection Value	15A	30A	60A
Automatic Current Limiting	Yes
Charging Model	Three stage Charging Control Model
Starting Voltage	9V
Over Load Ability	<150% Rated Current
Protection	PV Panel (Over Current,Over Voltage,Low Voltage)
Battery (Battery Lost,Over Load,Over Current)
Battery (Over Voltage,Low Voltage,Input Short Circuit)
DC Output (Over Current ,Over Load,Short Circuit)
Over Temperature Protection
Input Oppose	PV Input Oppose / Battery Input Oppose
Communication Agreement	Standard Modbus Agreement
Power Terminal	16mm /AWG5
Temperature Protection Value	Machine 85/Air Temperature55

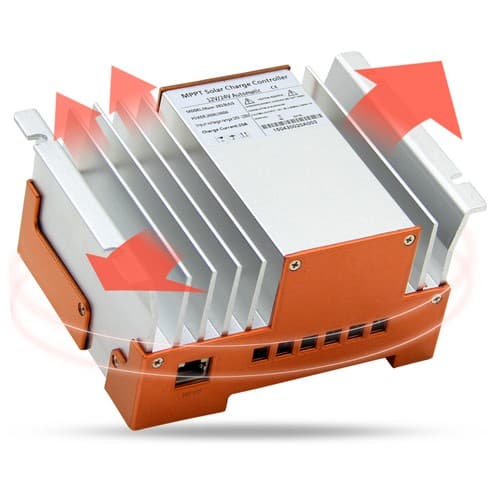

Cooling Way	Natural Cooling
Battery Type	Lead-acid Batteries,Nickel-hydrogen Batteries
Nickel Cadmium Batteries, Lithium Batteries
(Other Battery Type can customize)
Display	Dot matrix LCD screen
Button	Capacitive touch button
N.W/G.W(kg)	0.9/1.1kg	1.15/1.4kg	2.25/2.5kg
Production Size(mm)	9516783	11316783	23616783
