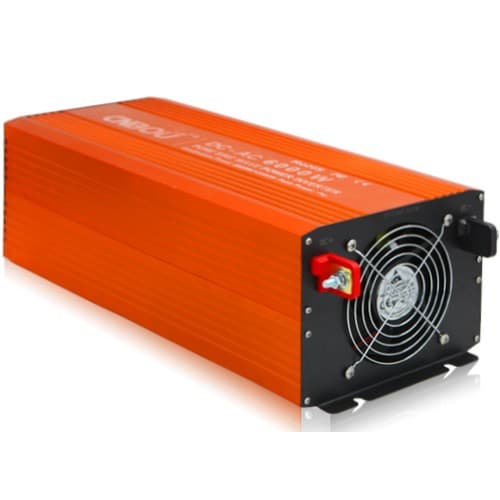

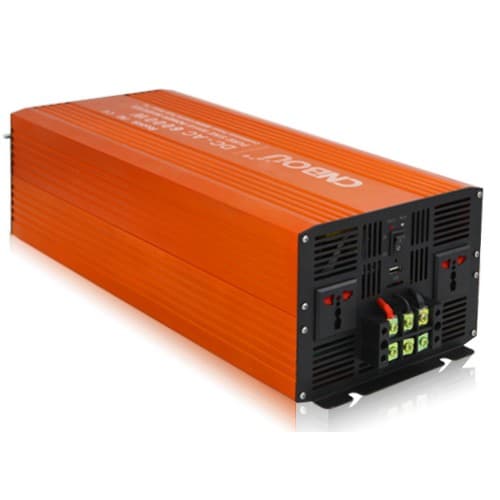

CNBOU, B48P6000W-1, 6000W Pure Sine Wave Inverter

The images shown are for illustration purposes only and may not be an exact representation of the product

CNBOU, B48P6000W-1, 6000W Pure Sine Wave Inverter

Name: CNBOU, B48P6000W-1, 6000W Pure Sine Wave Inverter
Brand: CNBOU
SKU: 4749
Price: 1045.12 USD
Availability: InStock

Model: B48P6000W-1

Manufactured by: CNBOU

Condition: New

Estimated Delivery:

Lead Time To Ship May Vary

Price: $1,306.40 $1,045.12

Widely used for solar and wind power generation system, vehicle (RV) system, outdoor working electric, household appliances, medical equipment emergency electricity, ship yacht electric etc.

Full 6000W Power , 2 Times Peak Power
Five Protection
High Transfer Efficiency
Excellent Appearance Design
Product Specifications | Download
Product Manual | Download

CNBOU Pure Sine Wave Inverter Support 5 Type Protection

Low / Over Voltage
Overload
Over Temperature
Short Circuit
Input Oppose

Product Character

LCD screen
Capacitive touch button
Original import MOS tube
RS485/8-pin RJ45 connector
Three stage Charging Control Model
Auto scan the light intensity to start or stop charging intelligently
Industrial fiberglass PCB board to ensure the good transmission loss

Model	B12P6000-1	B24P6000-1	B48P6000-1	B12P6000-2	B24P6000-2	B48P6000-2
Continuous Power	6000W
Surge Power	12000W
DC Voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
AC Voltage	100VAC or 110VAC or 120VAC +5%	220VAC or 230VAC or 240VAC +5%
No Load Current Draw	2.8A	1.4A	0.7A	2.8A	1.4A	0.7A
Frequency	50HZ+0.5HZ or 60HZ+0.5HZ
Wave Form	Pure Sine Wave
AC Regulation	THD 3%(Linear load)
USB Outlet	5V 500MA
Output efficiency	Highest94%
DC Voltage Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low Voltage Alarm	10.5+0.5V	21+0.5V	42+1V	10.5+0.5V	21+0.5V	42+1V
Low Voltage Shut Down	10+0.5V	20+0.5V	40+1V	10+0.5V	20+0.5V	40+1V
Over Voltage Shut Down	15.5+0.5V	31+0.5V	61+1V	15.5+0.5V	31+0.5V	61+1V
Low Voltage Recovery	13+0.5V	24+0.5V	48+1V	13+0.5V	24+0.5V	48+0.5V
Over Voltage Recovery	14.8V+0.5V	29.5V+0.5V	59V+1V	14.8V+0.5V	29.5V+0.5V	59V+0.5V
Protection	Low Voltage/Over Voltage	LED Alarm and Automatic Recovery
Overload	LED Alarm and Automatic Recovery
Over Temperature	LED Alarm and Automatic Recovery
Short Circuit	LED Alarm and Automatic Recovery
Input Oppose	Diode or MOS FET
Working Temperature	-10- +50	Quantity/Carton	1pcs
Storage Temperature	-30- +70	Carton Size	643300235 (mm)

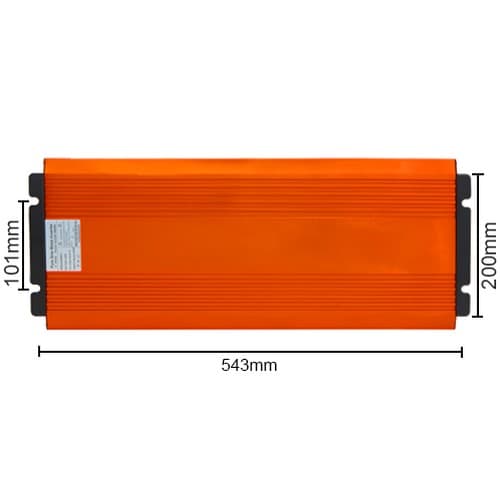

Production Size	557199145(mm)	Carton Weight	14(kg)
Packing Size	643300235 (mm)	Warranty	2 Years
N.W/G.W(KG)	11.5/14(kg)	Start	Bipolar soft-start
Certification	CE&ROSH	Cooling Way	Intelligent Cooling Fan
