Widely used for solar and wind power generation system, vehicle (RV) system, outdoor working electric, household appliances, medical equipment emergency electricity, ship yacht electric etc.- Full 3000W Power , 2 Times Peak Power
- Five Protection
- High Transfer Efficiency
- Excellent Appearance Design
- Product Specifications | Download
- Product Manual | Download

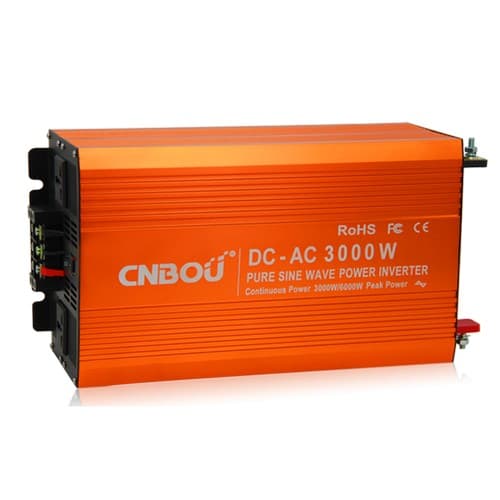

CNBOU Pure Sine Wave Inverter Support 5 Type Protection - Low / Over Voltage
- Overload
- Over Temperature
- Short Circuit
- Input Oppose
Product Character- GB Copper Wire, reducing the line losses
- High quality silicone thermal pad, thermal faster,insulation better.
- Oxidation treatment radiator, heat dissipation more better, more safe.
- Stainless steel screws, insulation covering played shell and radiator insulation ,more safe.
- Insulating paper ,make the heat sink and PCB circuit board insulation ,avoid leakage, safety protection
- The former driver control panel ,PWM signal, the perfect protection, precision patch.Capacitive touch button
- The after driver control panel, Four-layer board sided precision chiptechnology, improve the protection of the sine wave signal modulation
| Model | B12P3000-1 | B24P3000-1 | B48P3000-1 | B12P3000-2 | B24P3000-2 | B48P3000-2 |
| Continuous Power | 3000W |
| Surge Power | 6000W |
| DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| AC Voltage | 100VAC or 110VAC or 120VAC +5% | 220VAC or 230VAC or 240VAC +5% |
| No Load Current Draw | 1.5A | 0..8A | 0.3A | 1.5A | 0 .8A | 0.3A |
| Frequency | 50HZ+0.5HZ or 60HZ+0.5HZ |
| Wave Form | Pure Sine Wave |
| AC Regulation | THD 3%(Linear load) |
| USB Outlet | 5V 500MA |
| Output efficiency | Highest94% |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5+0.5V | 21+0.5V | 42+1V | 10.5+0.5V | 21+0.5V | 42+1V |
| Low Voltage Shut Down | 10+0.5V | 20+0.5V | 40+1V | 10+0.5V | 20+0.5V | 40+1V |
| Over Voltage Shut Down | 15.5+0.5V | 31+0.5V | 61+1V | 15.5+0.5V | 31+0.5V | 61+1V |
| Low Voltage Recovery | 13+0.5V | 24+0.5V | 48+1V | 13+0.5V | 24+0.5V | 48+0.5V |
| Over Voltage Recovery | 14.8V+0.5V | 29.5V+0.5V | 59V+1V | 14.8V+0.5V | 29.5V+0.5V | 59V+0.5V |
| Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery |
| Overload | LED Alarm and Automatic Recovery |
| Over Temperature | LED Alarm and Automatic Recovery |
| Short Circuit | LED Alarm and Automatic Recovery |
| Input Oppose | Diode or Mos FET |
| Working Temperature | -10- +50 | Quantity/Carton | 1pcs |
| Storage Temperature | -30- +70 | Carton Size | 460*300*235 (mm) |

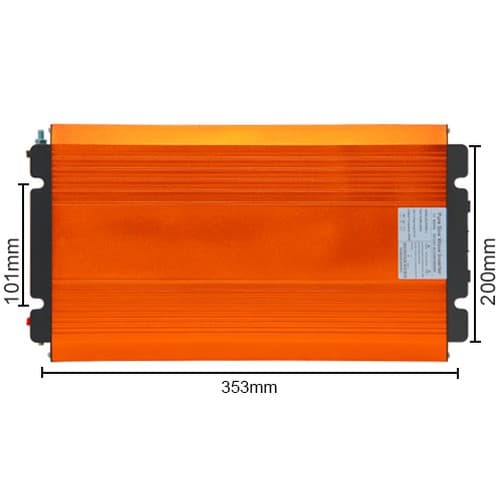

| Production Size | 367*199*145(mm) | Carton Weight | 9(kg) |
| Packing Size | 460*300*235 (mm) | Warranty | 2 Years |
| N.W/G.W(KG) | 8/9(kg) | Start | Bipolar soft-start |

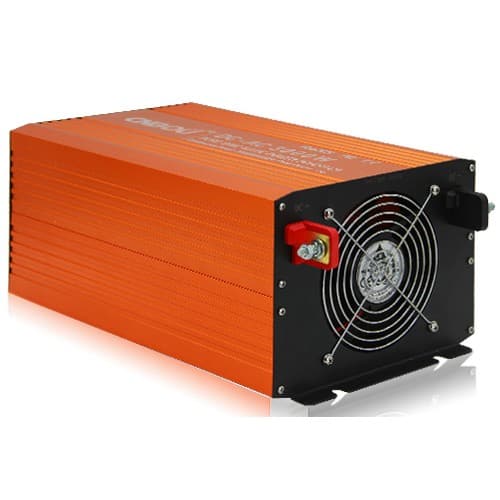

| Certification | CE&ROSH | Cooling Way | Intelligent Cooling Fan |
