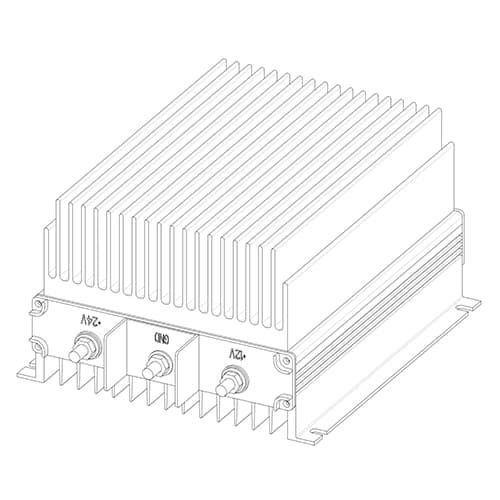

The Vanner 12V TO 24V DC to DC Converter is an efficient and highly reliable method of obtaining 24 volt DC power from a 12 volt DC electrical system.
Normal Operation: Model SP00158 DC to DC Converter will provide up to 45 amps continuous output andmaintain 27.5 volts output voltage across the full range of DC input voltage. No minimum load is required.
No output condition: DC input voltage must be above 12.5 volts for the unit to "turn ON" and must remainabove 11.4 volts during operation.
Overload Condition: An overload condition exists when the 24 volt load exceeds the SP00158 output ratingof 45 amps. The symptoms that indicate an overload condition exists are output voltage below 27.5vdc combined with 45 amps output current. The overload condition will not damage the DC to DC Converter. During the overload, internal protection circuits reduce output voltage as needed to limit the output current to 45 amps.
Parallel Operation: Multiple Model SP00158 DC to DC Converters can be operated in parallel.
